System overview ECOLOG-PRO Wired

Modular, scalable solution with the wired and powerful ECOLOG-PRO Wired data loggers.

Manage various sites with a single integrated solution. Full access to server and database infrastructure offers flexibile integration with any other system.

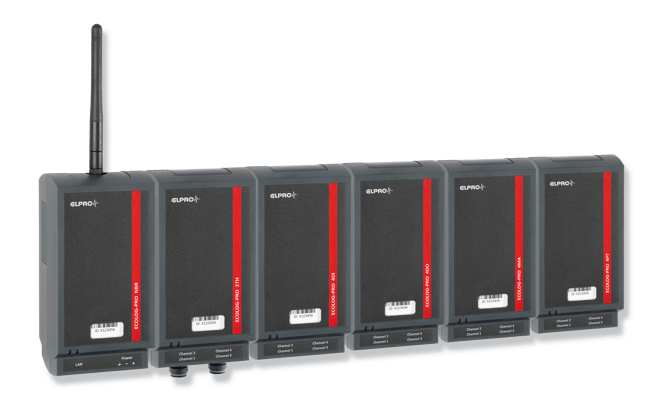

The following devices are available within the range of ECOLOG-PRO Wired:

	ECOLOG-PRO LBR	Communication and power module. It has a RJ45 and a power supply connector. (AC adapter and LAN cable not included.)
	ECOLOG-PRO 4PT	Temperature measurement module. The module has 4 inputs for Pt100 temperature sensors. Validation certificate included.
	ECOLOG-PRO 4MA	Measurement module for analog signals. The module has 4 inputs for standard 4..20 mA signals. The monitored transmitters can be powered by the module or by an external power supply. Validation certificate included.
	ECOLOG-PRO 2TH	Measurement module for temperature and rel. humidity. The module has 2 inputs for T / RH sensors.
	ECOLOG-PRO 4DO	Module with 4 contact outputs for alarm forwarding. The contact outputs are toggle switches (NO / NC).
	ECOLOG-PRO 4DI	Module with 4 contact inputs (digital inputs). The monitored contacts are powered by the module.
